WZ1V's VHF Modifications Page

AM6154/55 AMPLIFIER MODS:

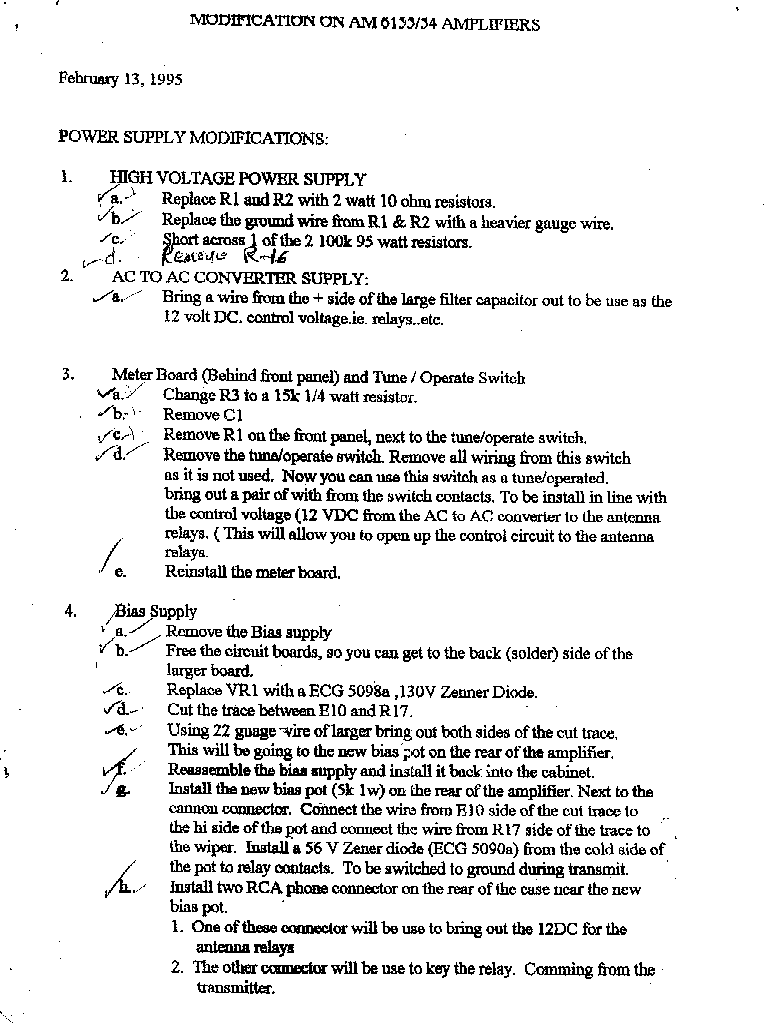

  • AM6154/55 PS MODS

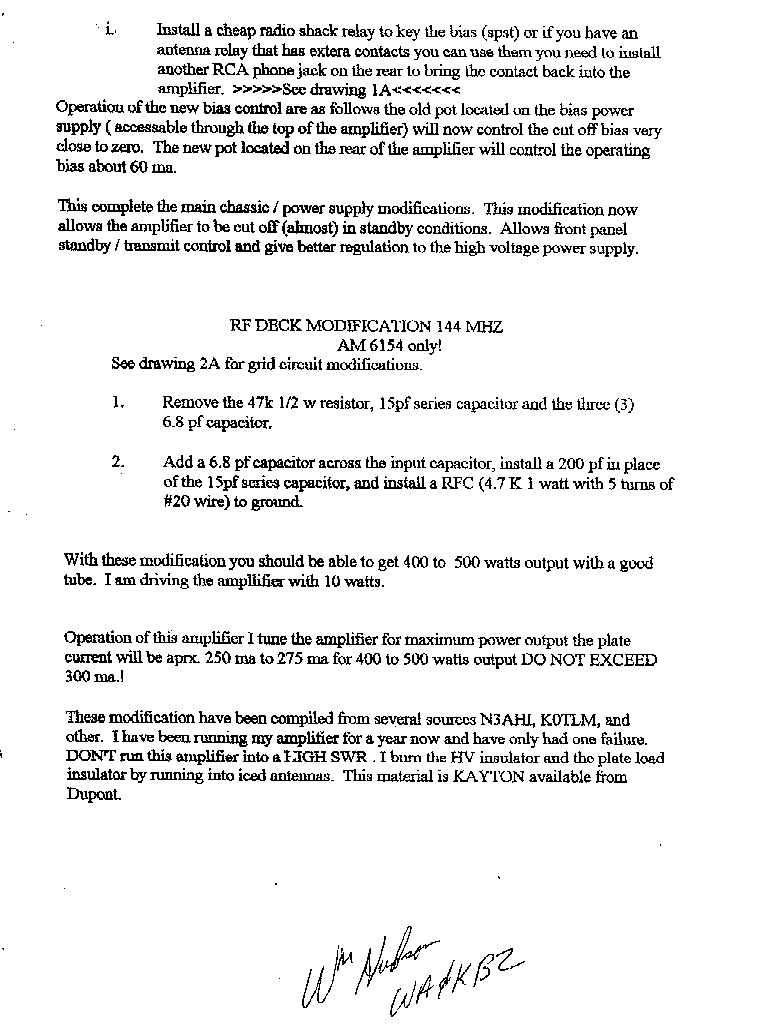

  • AM6154/55 PS MODS / 2M RF MODS
  • AM6154/55 2M GRID and PLATE CIRCUIT MODS

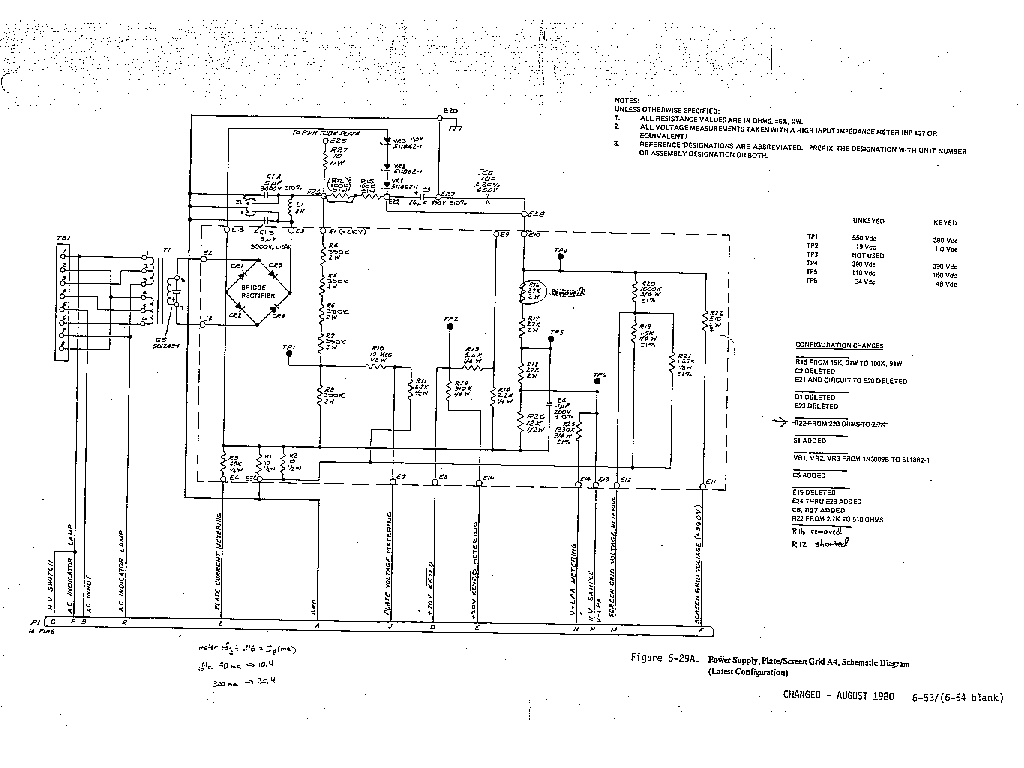

  • AM6154/55 PS SCHEMATIC

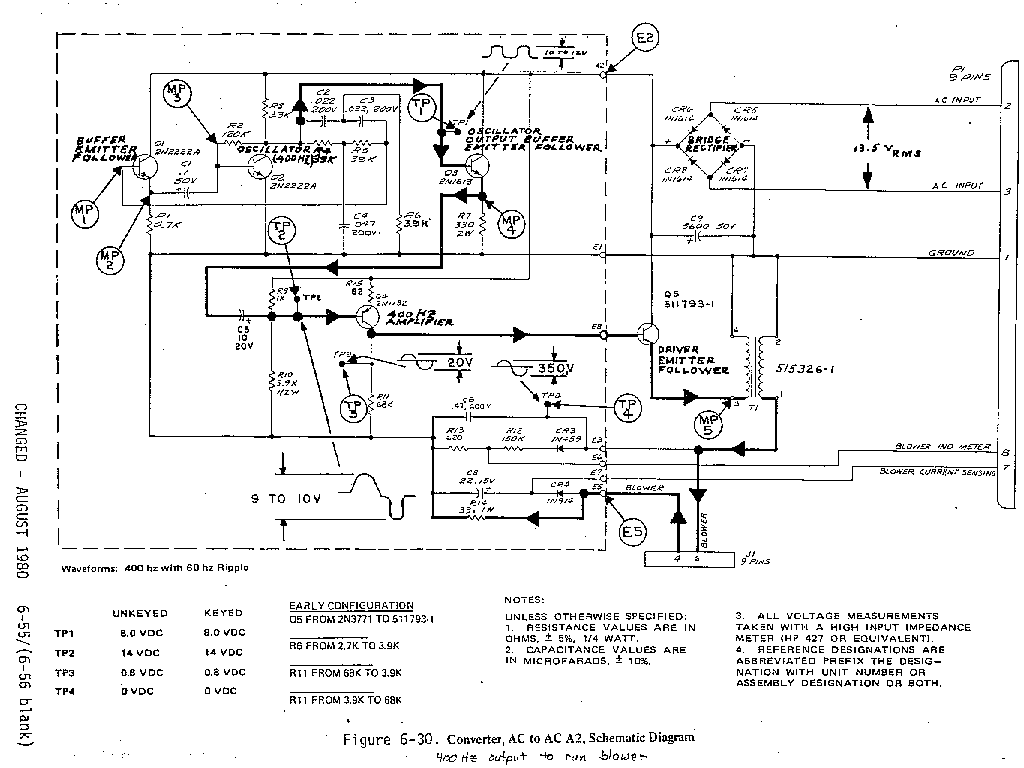

  • AM6154/55 AC-AC CONVERTER SCHEMATIC

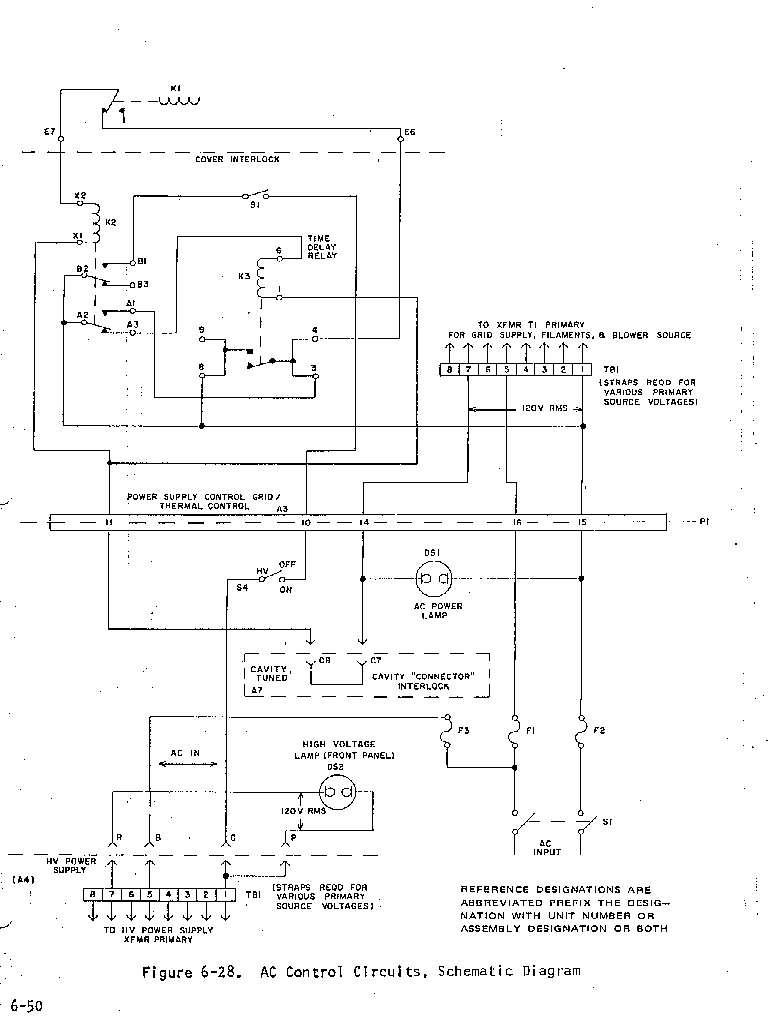

  • AM6154/55 AC CONTROLS SCHEMATIC

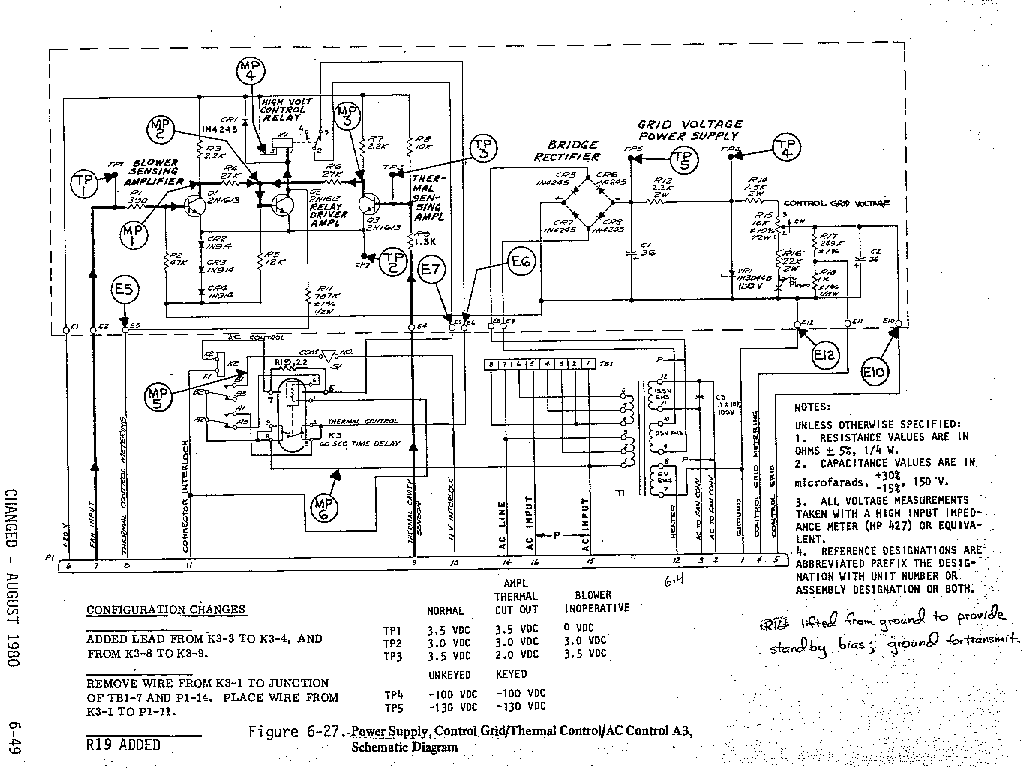

  • AM6154/55 PS CONTROL GRID / THERMAL CONTROL SCHEMATIC

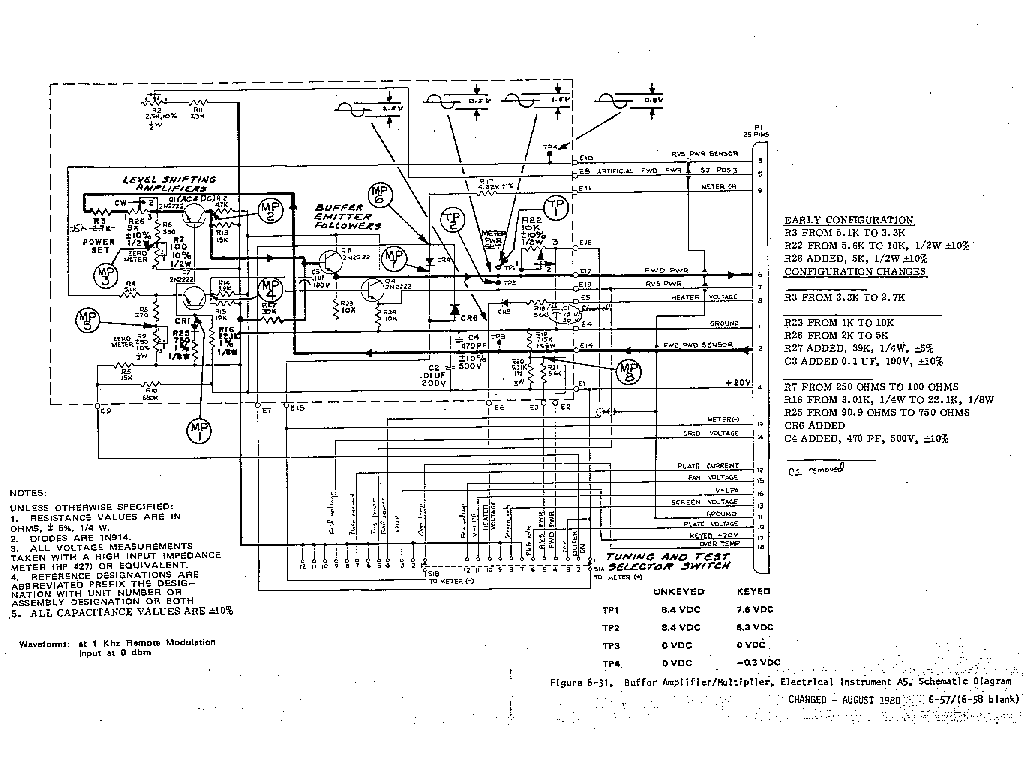

  • AM6154/55 BUFFER AMP / MULTIPLIER SCHEMATIC

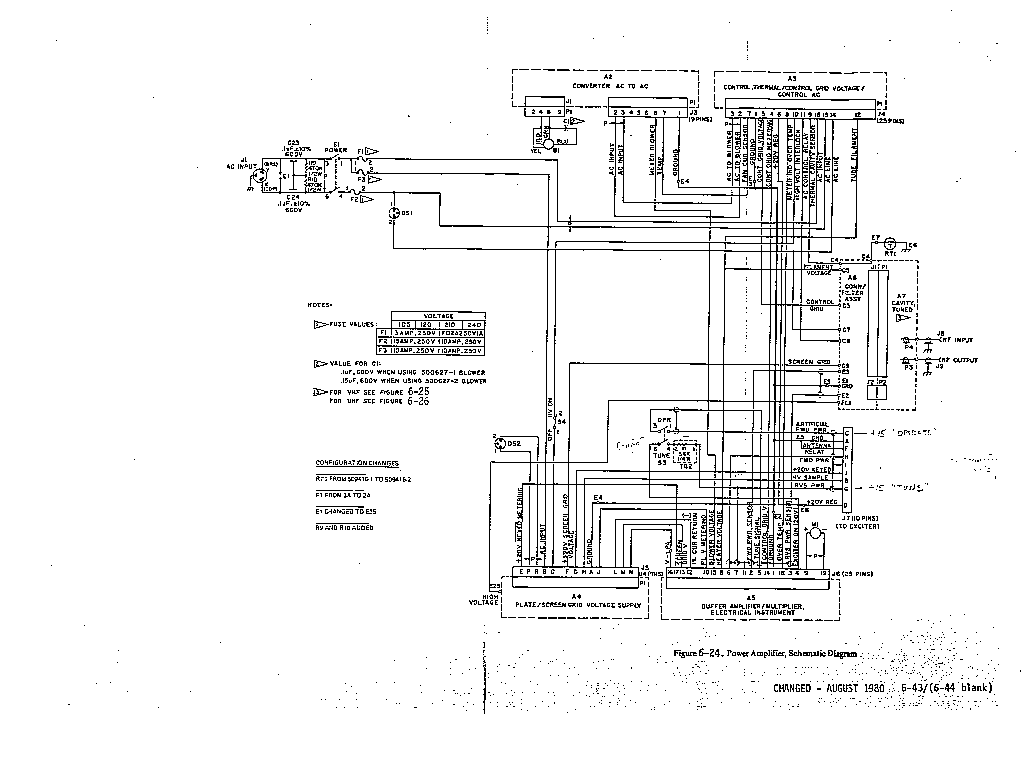

  • AM6154/55 POWER AMPLIFIER SCHEMATIC

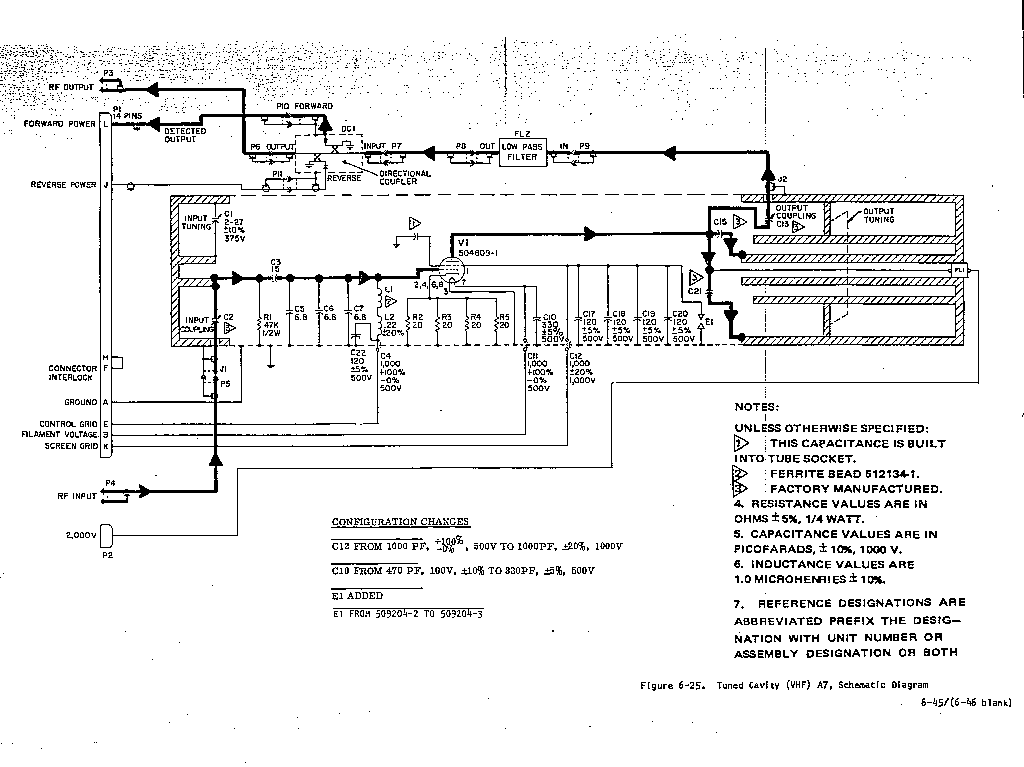

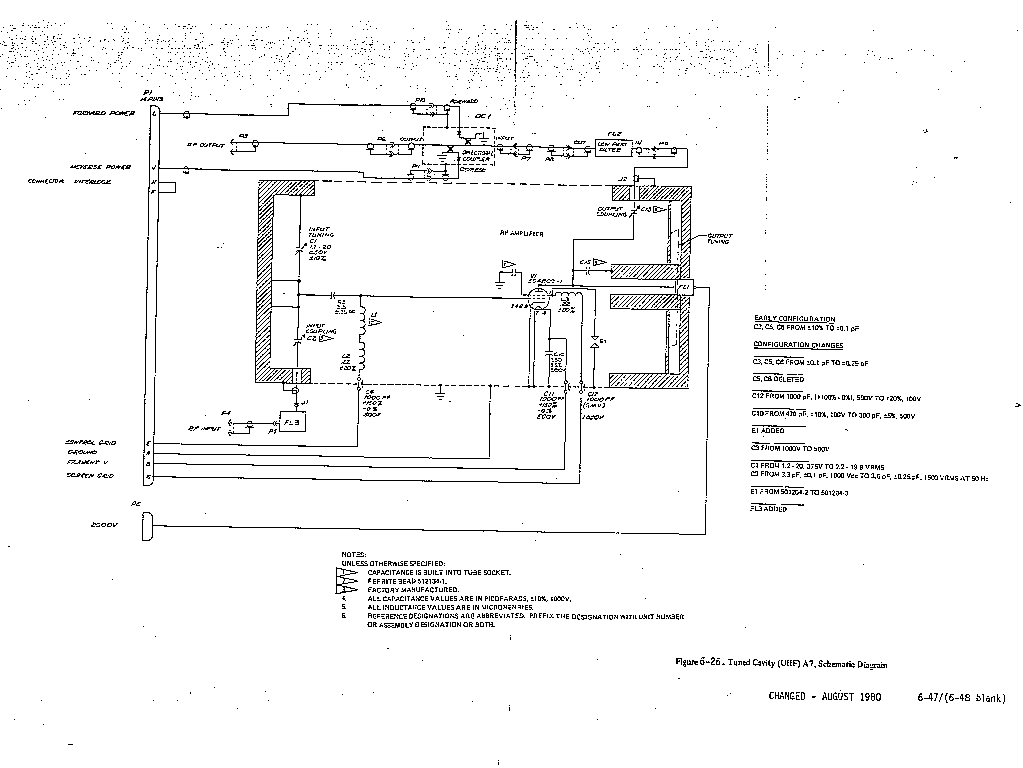

  • AM6154 TUNED CAVITY VHF SCHEMATIC

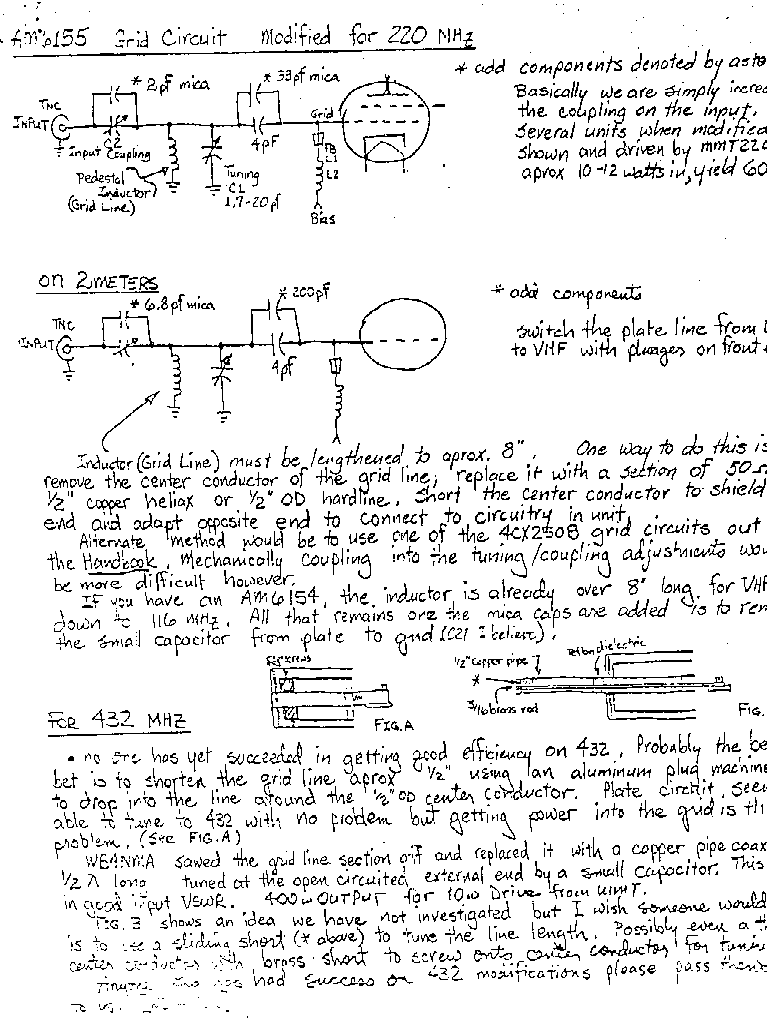

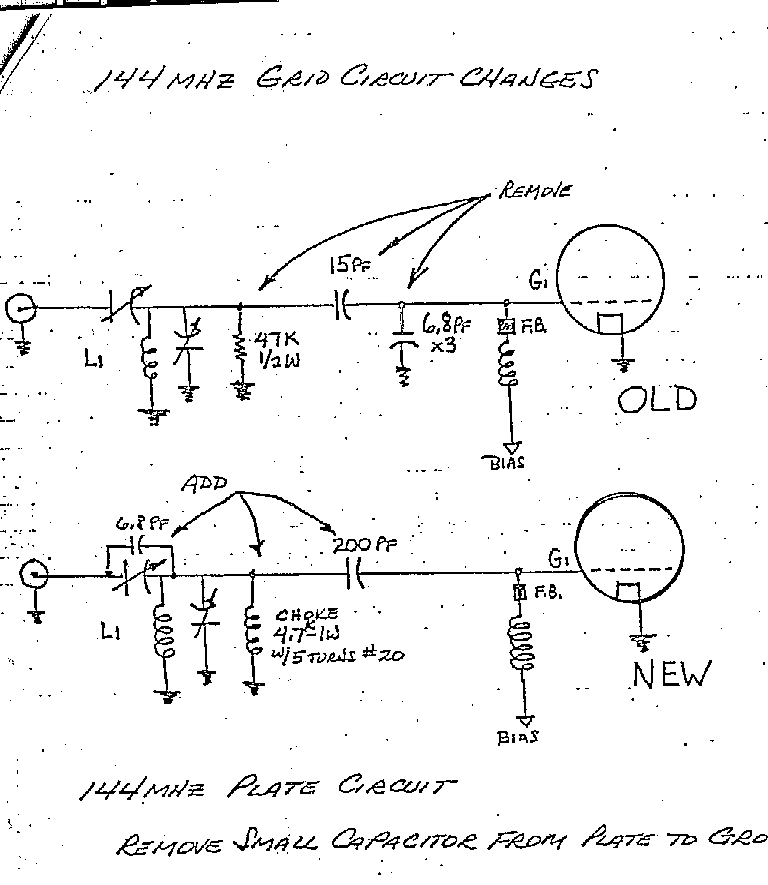

  • AM6154/55 220, 144 MHz GRID CIRCUIT MODS
  • AM6155 TUNED CAVITY UHF SCHEMATIC

    PUTTING THE HEATHKIT SB200 ON 6:

    SB200 Amplifier 6 METER MOD

    PUTTING THE HEATHKIT SB220 ON 6:

    SB220 Amplifier 6 METER MOD
